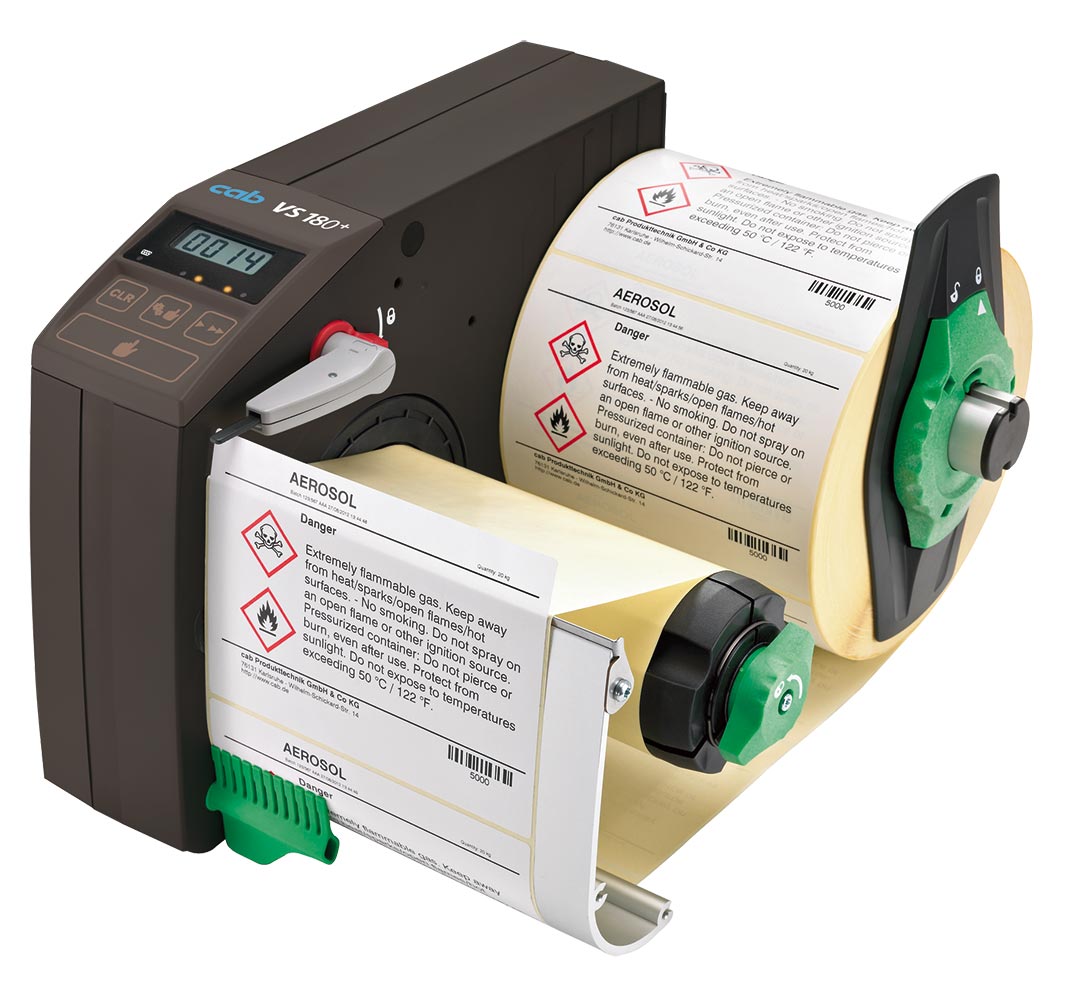

Label Dispenser VS 180+

 Common technical data

                 HS

                VS

   with operation panel "+"

 Dispensing direction

horizontal

vertikal



 Label orientation - print image

bottom leading

top leading



 Labels

on rolls, standard or die cut, fan-folded optional

 Materials

paper, textiles, plastics also transparent

 Feed supply rate up to mm/sec

200

100 / 200

 Label roll: outside diameter up to mm

200

 Label roll: core diameter mm

38 - 76

 Label roll: weight max. kg

4

 Label roll: winding direction

outside or inside
