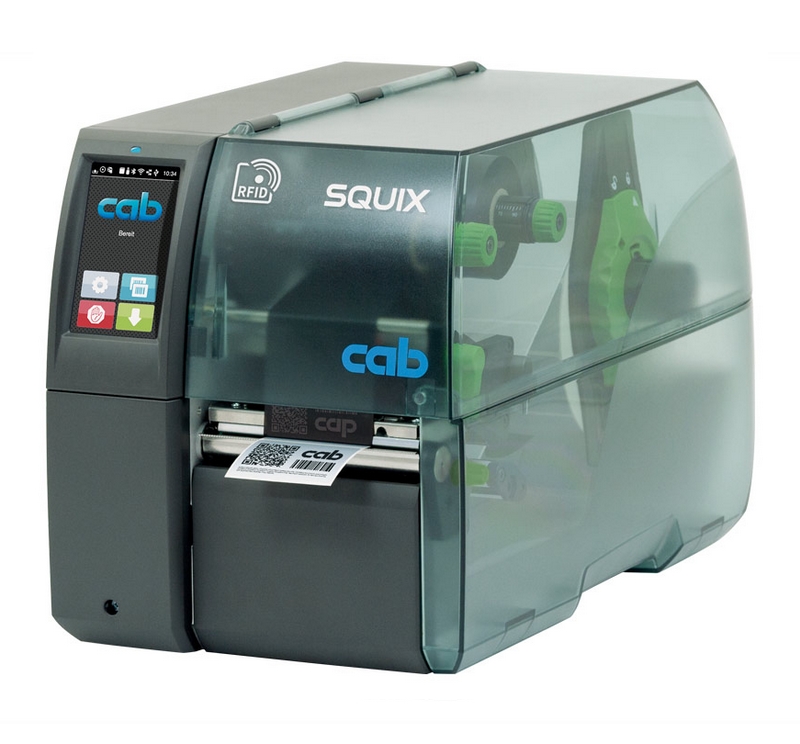

HF RFID seçeneklerini entegre eden SQUIX etiket yazıcıları, RFID etiketlerinin yazılması ve yazdırılmasıyla ilgili süreçlerde en yüksek endüstriyel güvenilirliği sağlar.

Her biri belirli bir RFID etiket sınıfı için optimize edilmiş üç UHF RFID modülü seçenek olarak sunulur: ortak RFID etiketleri, metal üzeri RFID etiketleri ve mini RFID etiketleri Bir UHF RFID seçeneği, halihazırda çok çeşitli RFID etiketleri için uygundur.

Ayrıca kabin, özelleştirilmiş çözümlerin geliştirilmesini ve kalifikasyonunu destekler.


SQUIX technical detailsTechnical details


1- Hinged cover
The two-part cover made of impact-proof plastics folds when it is opened. Therefore, only little footprint is needed. The large panoramic window enables to check the material consumption and to track the full printing process.


2- Plungers
One plunger is fixed at the inner side. The second one is adjusted that far to the edge of the label until a good print image is ensured.


3- Rugged metal chassis
made of cast aluminum; basis to assemble all components


4- Peel-off function
Via the peel-off plate, the label is separated from the carrier material. Accurate imprint and dispense are achieved with the powered rewind assist roller and the pinch roller.


5- Periphery connection
Additional modules are easy to connect. All peripheral devices are plugged to the printer with two pins and fixed with a screw.


6- Ribbon holder
Fast and easy exchange of the ribbon is enabled with the three-part tightening axles.


7- Roll holder
The spring-mounted margin stop with a screw cap enables constant tension during material feed and therefore improves accurate imprint. If rolls with 100 mm core diameter are processed, an adapter is recommended.


8- Internal rewinder
Peel-off versions allow to rewind labels or carrier materials with or without a cardboard core. The three-part tightening axle provides easy material handling.


9- Rocker
When printing is started, the spring-mounted rocker with pulleys made of Teflon dampens the tension and therefore improves accurate imprint.


10- Material guide
It is mounted on the rocker. The stop is adjusted to the edge of the label with the rotary knob


Operation panel


Intuitive and easy operation with self-explanatory symbols to configure the device setups


Operation panel

1- LED signal: Power ON


2- Status bar: Data reception, Record data stream, Ribbon warning, SD memory card/USB memory stick plugged in, Bluetooth, WLAN, Ethernet, USB Slave, Time


3- Printer status: Ready, Pause, Number of printed labels per print job, Label in peel-off position, Awaiting external start signal


4-  Periphery buttons:


Cutter/perforation cutter: direct cutting
External rewinder: winding outside or inside
Tear-off or peel-off mode: print the next label
Applicator: label application



5-  Operation


Jump  Jump to menu

Reprint  Reprint last label

Interrupt   Interrupt and continue print job

Stop  Stop and delete all print jobs

Label feed  Label feed

6- USB slot for the Service Key or a memory stick, to load data in the IFFS storage


7- USB-WLAN-Stick 2.4 GHz 802.11b/g/n included as an extra item in the scope of delivery;
In hotspot mode it is possible to directly connect a mobile device with the printer via WLAN.

RFID label printer SQUIX 4.3 M SQUIX 4 M
Material guidance centered
Printing method: Thermal transfer Typical Typical Typical Typical
 Thermal direct Typical Typical Possible -
Printable resolutiondpi 203 300 300 600
Print speedup to mm/s 300 300 300 150
Print widthup to mm 104 108.4 105.7 105.7
RFID labels according to specifications as described separately, added by all materials printable by a SQUIX 4M printer
Roll diameterup to mm 205
Core diametermm 38 - 76
Winding outside or inside
Liner Widthup to mm 9 - 114
Ribbon Coating outside or inside
Roll diameterup to mm 90
Core diametermm 25
Lengthup to m 600
Widthmm 25 - 114
Printer dimensions and weight
Width x Height x Depthmm 252 x 288 x 520
Weightkg approx. 12
RS232C 1,200 to 230,400 bauds / 8 bits
USB 2.0 Hi-speed device to connect a PC
Ethernet 10/100 Mbit/s
1 USB host on the operation panelto plug a
1 USB host on the operation panelto plug a
service key or USB memory stick
USB WLAN stick 2.4 GHz 802.11b/g/n
2 USB hosts on the back of the deviceto plug a keyboard, barcode scanner, USB Bluetooth adapter or USB WLAN stick
Digital I/O interface providing 8 inputs and outputs Option
Operating data
Voltage 100 - 240 VAC ~ 50/60 Hz, PFC
Power consumption <10 W in standby / 100 W in typical operation / max. 200 W
Temperature / humidity: Operation +5 - 40°C / 10 - 85%, not condensing
 Stock 0 - 60°C / 20 - 85%, not condensing
 Transport –25 - 60°C / 20 - 85%, not condensing
Approvals CE
in preparation for CW 20 FCC Class A, ICES-3
from CW 33 cULus, CB
  others may be provided on request
Operation panel
Colored LCD touch display Screen diagonal" 4.3
Resolution Width x Heightpx 272 x 480
Printer Ribbon pre-warning
Ribbon ending
Ribbon winding
Labels ending
Peripheral error
Print head voltage
Print head temperature
Print head open
Pinch roller open

 For more technical data see our product catalog (PDF)

Technical data of UHF RFID modules

UHF RFID module on SQUIX 4 Dual UHF RFID module High Sensitivity UHF RFID module
Standard UHF RFID module On-metal UHF RFID module
Standard UHF EPC Class 1 Gen 2
Interface specification ISO/IEC 18000-63
Frequency scope ETSI & FCC ETSI & FCC ETSI FCC*
Input interface JScript
Features Tag calibration, invalid labels be identified, proof printing, memory banks be locked
RFID tags Standard On-metal High Sensitivity
Material guidance centered
RFID print speedup to mm/s 100
Printable see SQUIX 4M
Approved RFID labels / tags
identytag Wet Inlay 53x53 mm
          Antenna           Smartrac FROG 3D
          Tag IC           Impinj Monza 4D
identytag SmartLabel 100x150mm
          Antenna           Smartrac DogBone
          Tag IC           Impinj Monza R6
identytag   Smart Label On-Metal 54x25mm
          Tag IC           NXP UCODE 7XM
Confidex Automotive Carrier Pro
          M4QT 92x24mm (3000446)
          Tag IC           Inpinj Monza 4QT/4G
Confidex Casey MR6-P 92x24mm (3002400)
          Tag IC           Impinj Monza R6-P
Confidex Automotive Kanban 80 x 208 mm (3001985)
          Tag IC           Impinj Monza 4E
Avery Dennison BJ 269 AD663U7XM
WET WHITE 93x22 mm
  BU117 AD151 62IM
WET WHITE 25x18 mm
          Antenna           AD-663u7xm           AD-151iM
          Tag IC           NXP UCODE 7xm           NXP G2iM
Avery Dennison BR800 AD665U8
WET WHITE 93x22 mm
          Antenna           AD-665u8
          Tag IC           NXP UCODE 8
Omni-ID IQ400 P
          Antenna           Alien ALN-9610
          Tag-IC           Alien Higgs 3
Omni-ID   IQ150 EU 54x12 mm
          Tag IC           Impinj Monza R6
Omni-ID   IQ150 US 54x12 mm
          Tag IC           Impinj Monza R6-P
Omni-ID   IQ600 EU 94x24 mm
          Tag IC           Impinj Monza R6

Katalog English PDF
